REDUCED
FLUSH HEAD
CLINCH SCREW

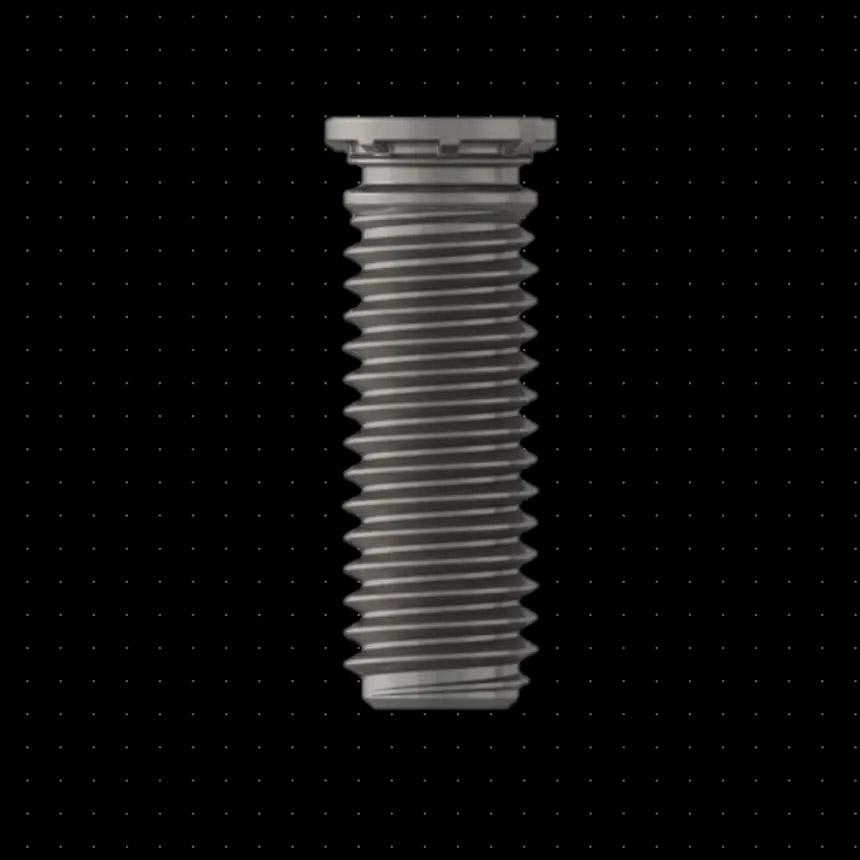

The Reduced Flush Head is made in hardened steel or 304 stainless steel. Depending on size, it is suitable for minimum 1 mm thickness plates and maximum 80HRB hardness.
–
Mechanical properties
Hardened steel
• Size range: M2.5 – M5
• Sheet hardness (max) – 80 HRB
• Sheet tensile strength (max) – 500MPa
304 stainless steel
• Size range: M2.5 – M10
• Sheet hardness (max) – 70 HRB
• Sheet tensile strength (max) – 400MPa
–
Standard surface treatments
• Plain (oiled)
• Zinc plating Cr3 – 8µm – clear passivation
• Zinc-Nickel plating – 8µm – black passivation
• Zinc flake (geomet – silver or black)
–
For more information, please contact our engineers:

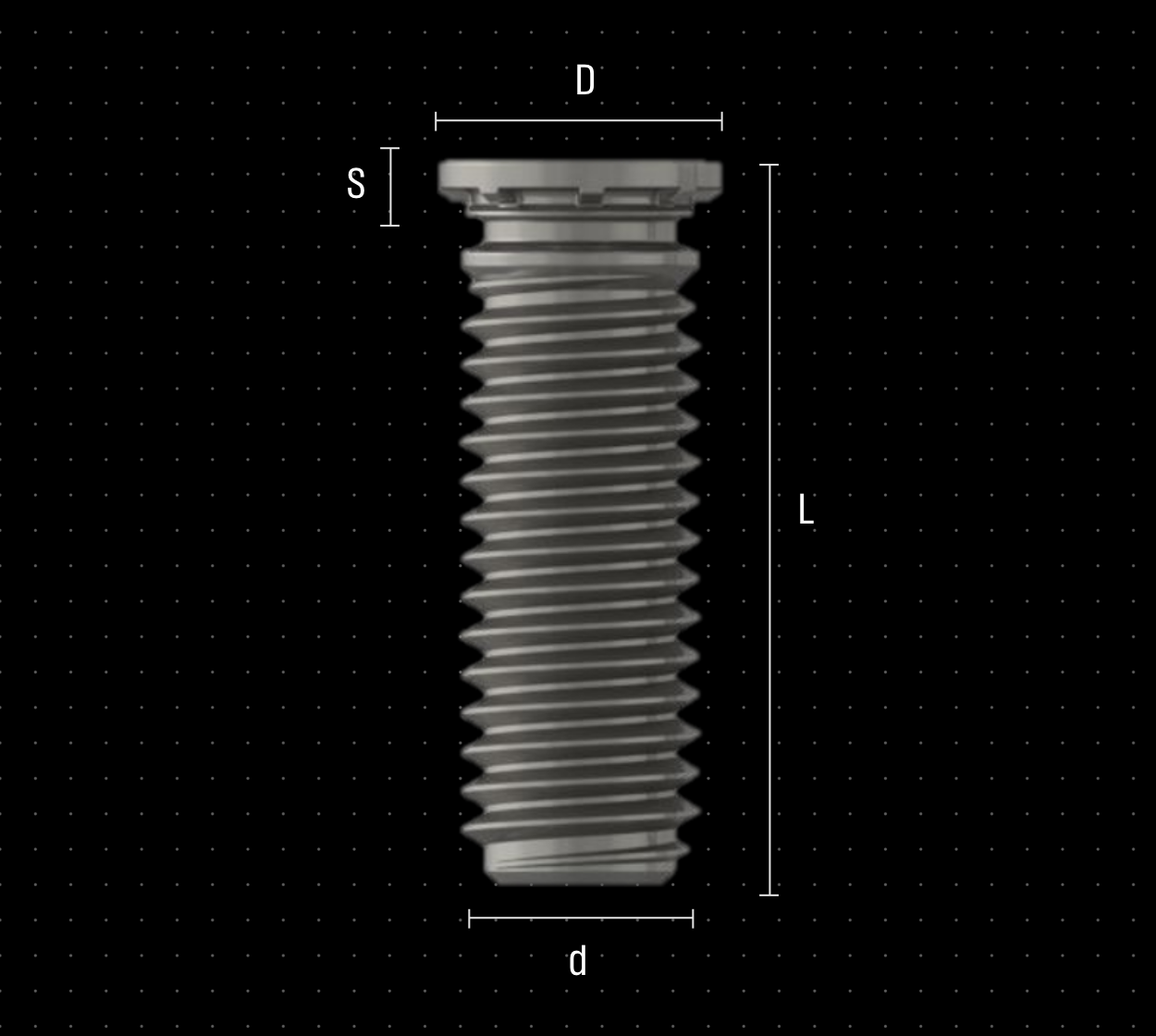

The Reduced Flush Head Clinch screw is available in a range of versions: from screw size: M2,5 up to size: M5.
For more information and detailed list of sizes. Download the production information below:
The Reduced Flush head clinch screw has features that generate many benefits such as:
• No welding or other destructive operations
• High tensile and torque resistance
• Possible to use in high variety of materials and material thicknesses
• Flush head design
• One sided access (no special die needed)
For more information, please contact our engineers:
The Reduced Flush head clinch screw is suitable for most materials such as:
• Steel
• Aluminium
• Magnesium
• Copper
• Composite
Implement Reduced Flush Head Clinch Screw into your production. Download cad drawing below:
