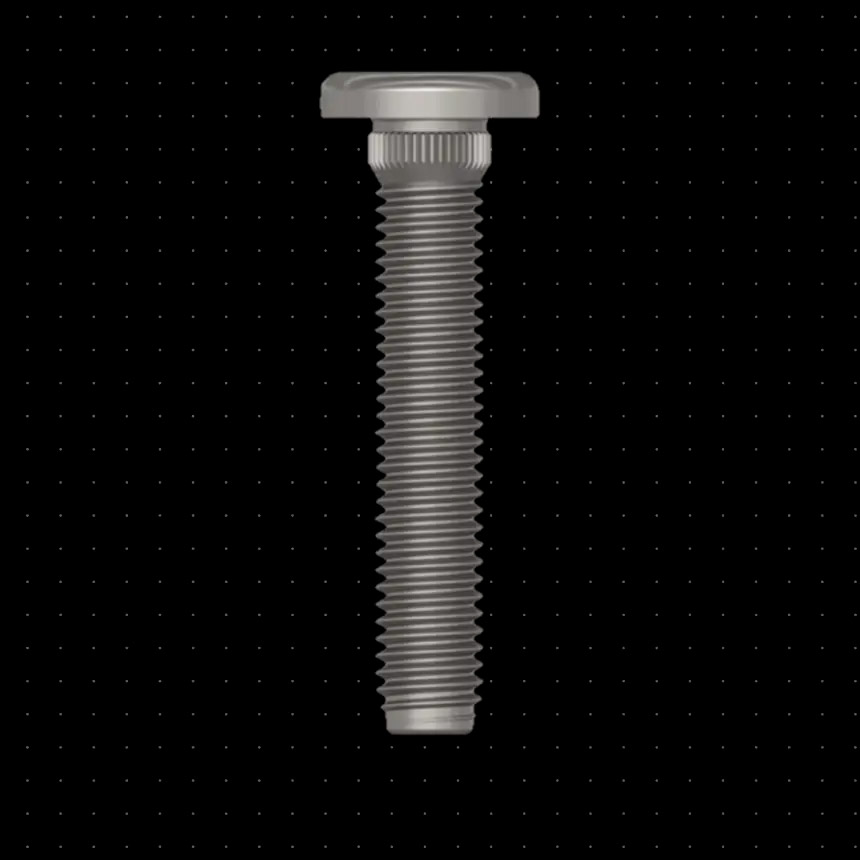

PAN HEAD
PRESS SCREW
The Press Screw is made in Hardened carbon steel 8.8 and 10.9.

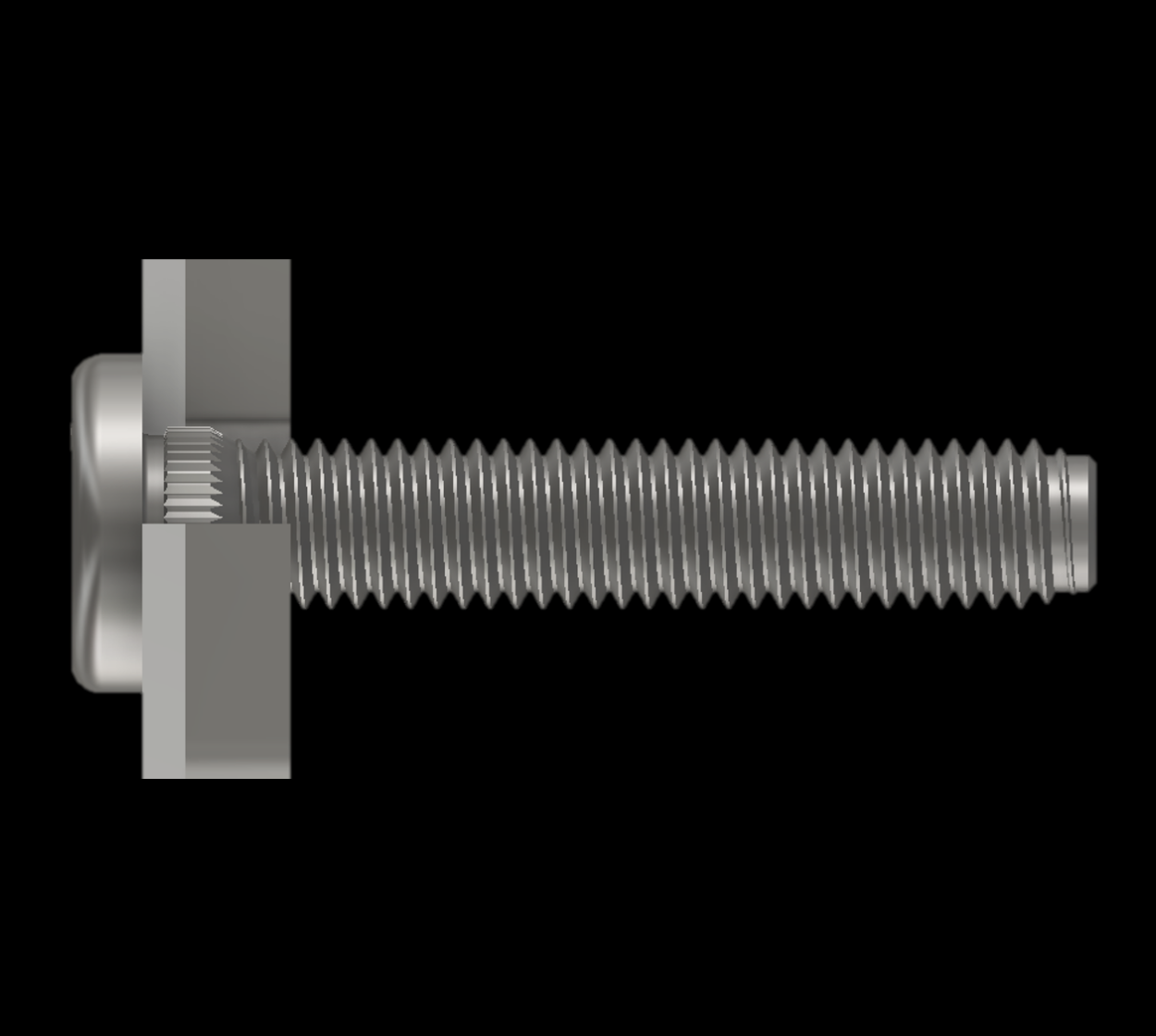

Depending on size, it is suitable for minimum 1,5mm thickness plates.
–
Mechanical properties
Hardened carbon steel
• 8.8
• 10.9
–
Standard surface treatments
• Plain (oiled)
• Zinc plating Cr3 – 8µm – clear passivation
• Zinc-Nickel plating – 8µm – black/silver passivation
–
For more information, please contact our engineers:

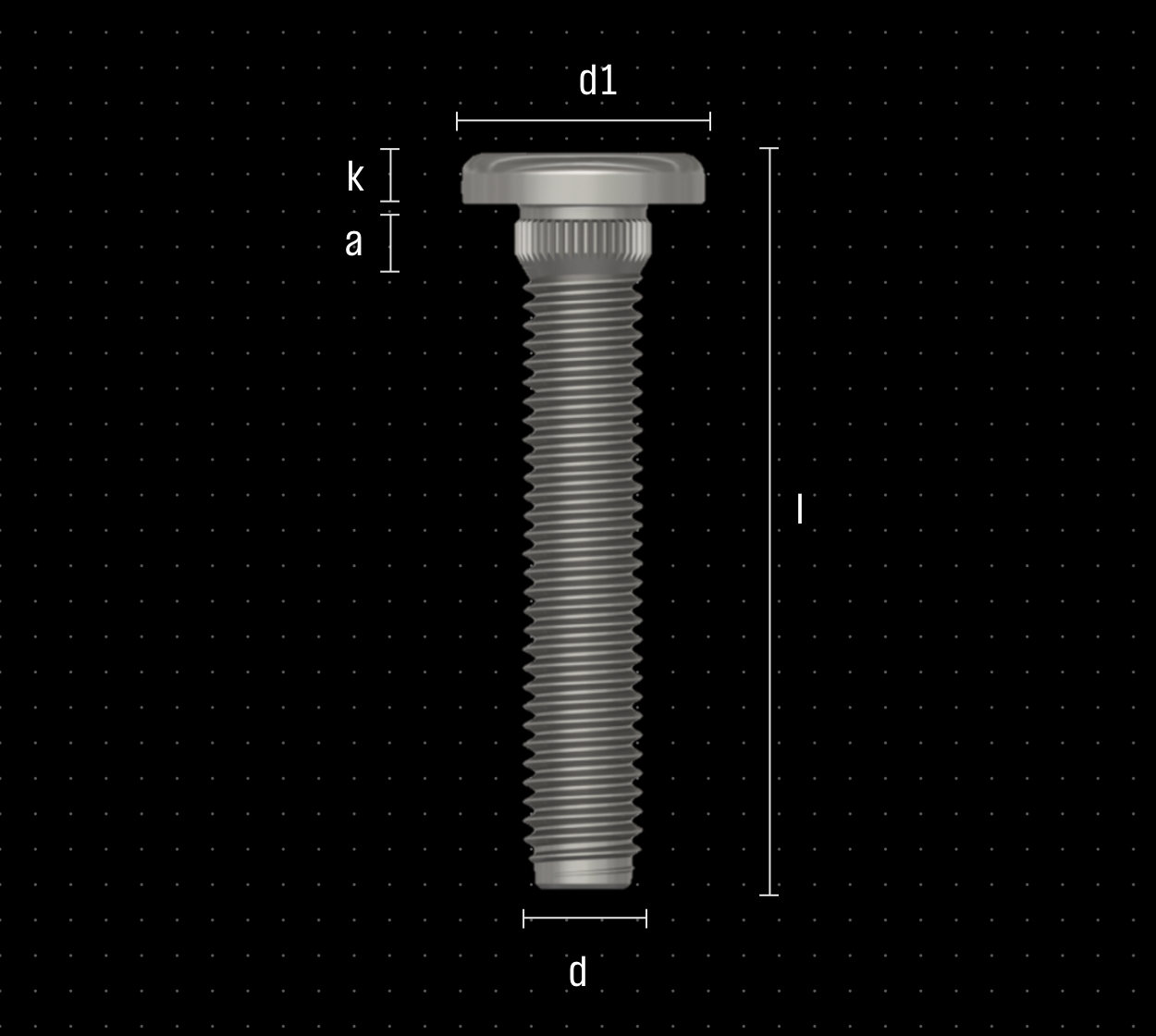

The Pan Head Press Screw is available in a wide range of versions: from screw size M5 – up to size M12.
For more information and detailed list of sizes. Download the production information below:
The Pan Head Press Screw has features that generate many benefits such as:
• No welding or other destructive operations
• Easy installation
• One sided access (no special die needed)
The Pan Head Press Screw is suitable for most materials such as:
• Steel
• Aluminium
• Magnesium
• Copper
• Composite
Implement Pan Head Press Screw into your production. Download cad drawing below:
