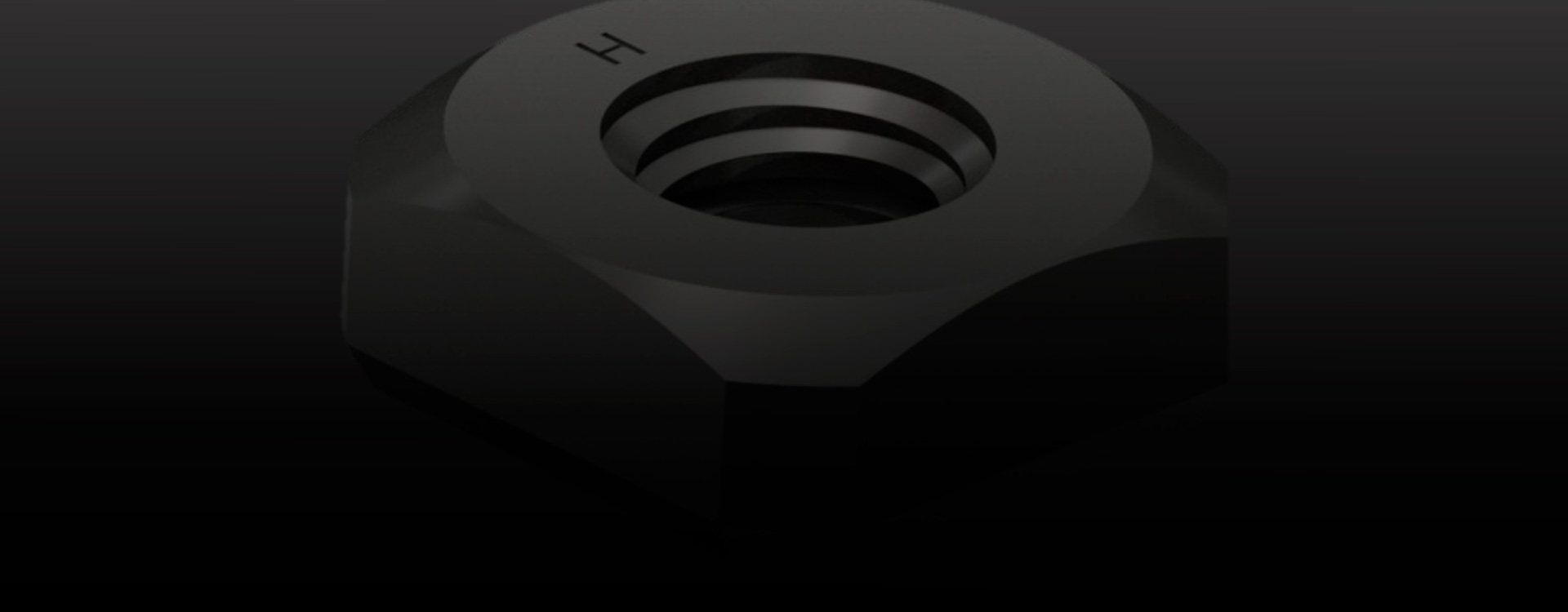

KP
PIERCE NUT

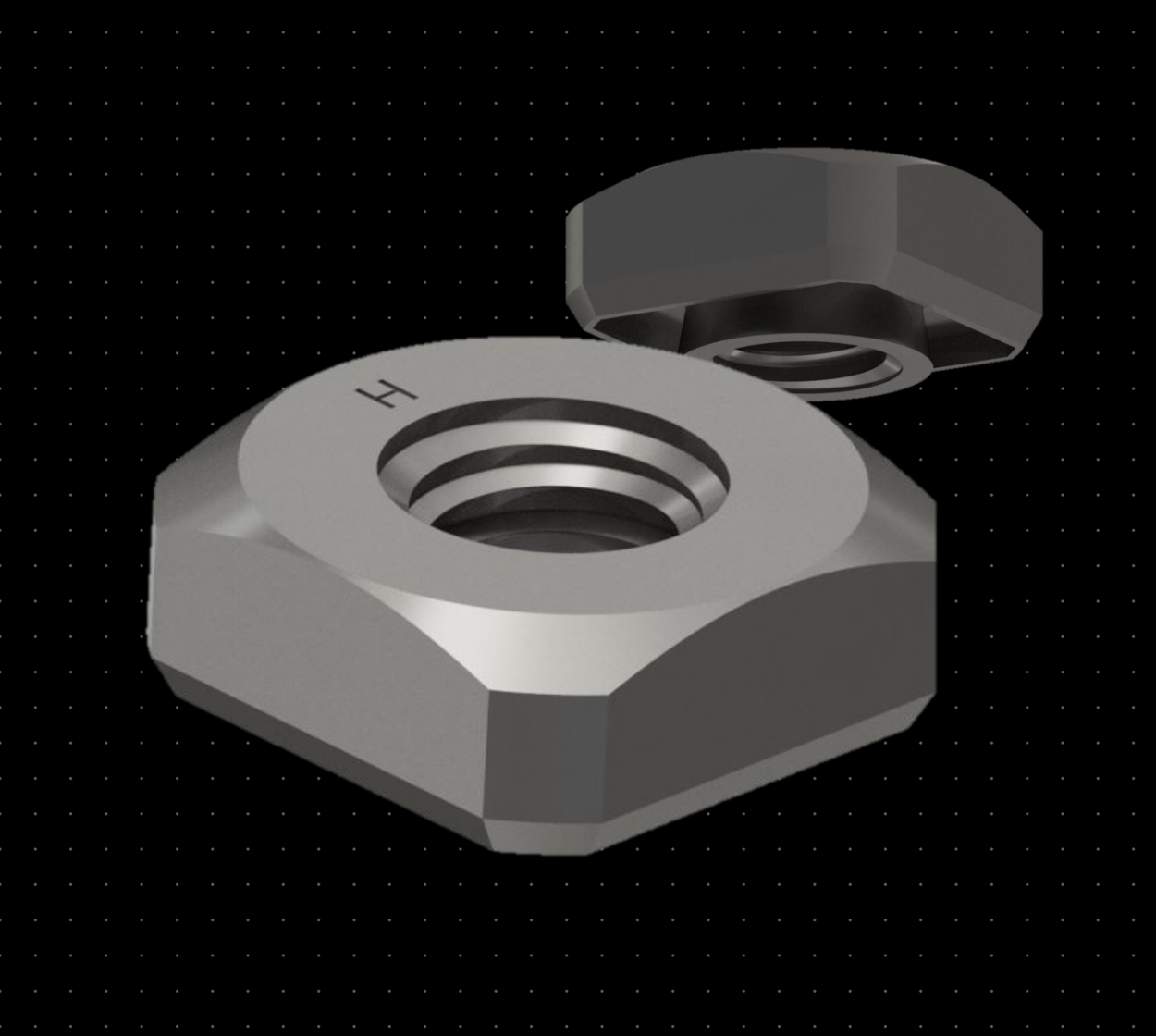

The KP Pierce nut are made in steel, and suitable for 0.6 – 2mm plate thickness. Strength version: class 8 & class 10.
–
Mechanical properties
Standard (Class 8):
• Used for <340MPa* UTS material
• Hardness range 18 – 30 HRC
• Proof load tested for ISO 898-2 Class 10
High strength (Class 10):
• Used for <600MPa* UTS material
• Hardness range 35 – 40 HRC
• Proof load tested for ISO 898-2 Class 10
–
Standard surface treatments
• Plan (oiled)
• Zinc plating Cr3 – 8µm – clear passivation
• Zinc-Nickel plating – 8µm – black passivation
For more information, please contact our engineers:

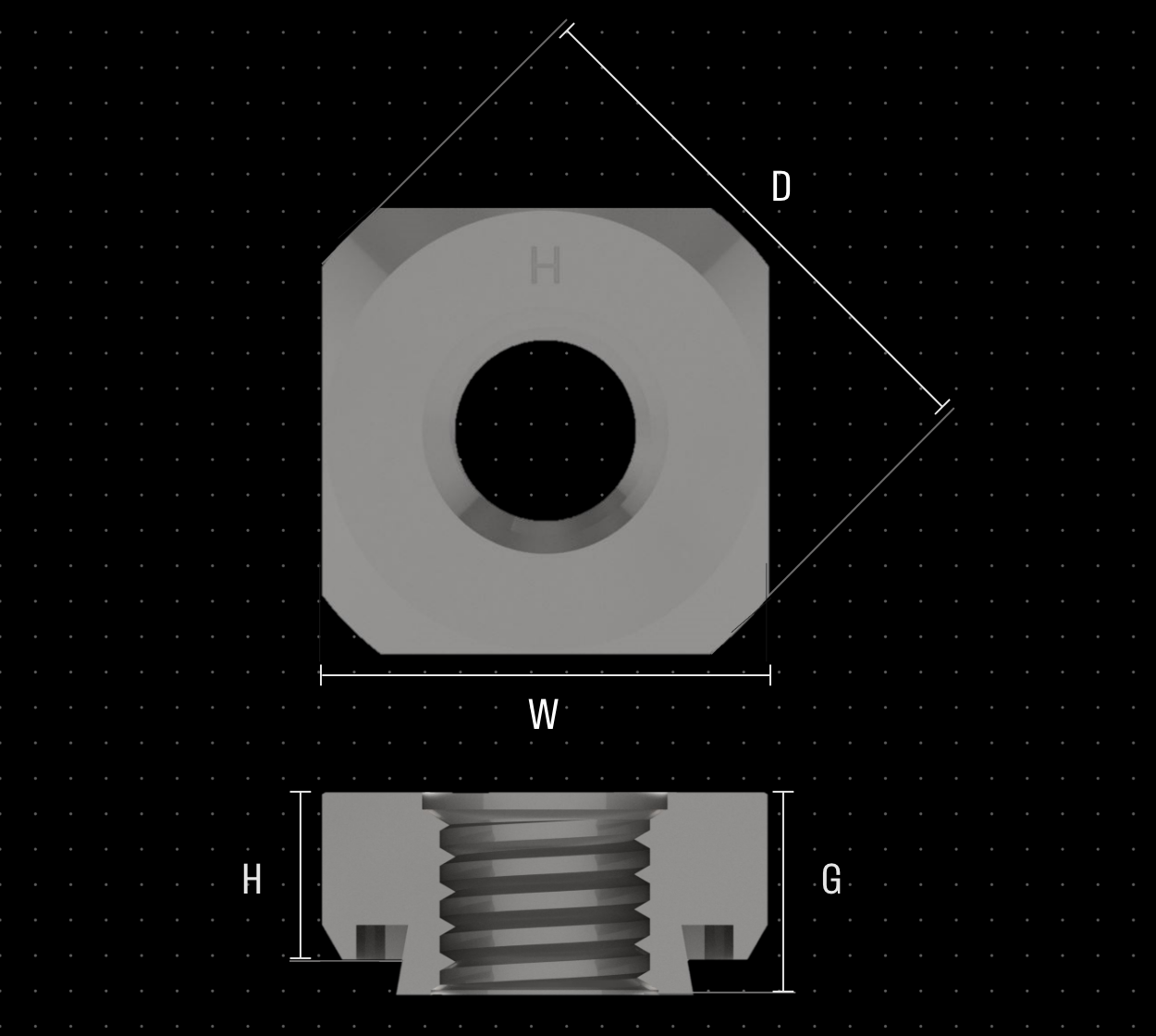

Available in a wide range of versions, from nut size M5– up to M12.
For more information and detailed list of sizes. Download the production information below:
The KP Pierce nut has features that generate many benefits such as:
• No premade hole, self- piercing and clinching
• Double plate piercing –plate joining
• Flexible installation
The KP Pierce nut is suitable for most materials such as:
• Steel
• Aluminium
• Magnesium
• Copper
• Composite
Implement KP Pierce Nut into your production. Download cad drawing below:
