CLINCH SCREW
CHECKLE

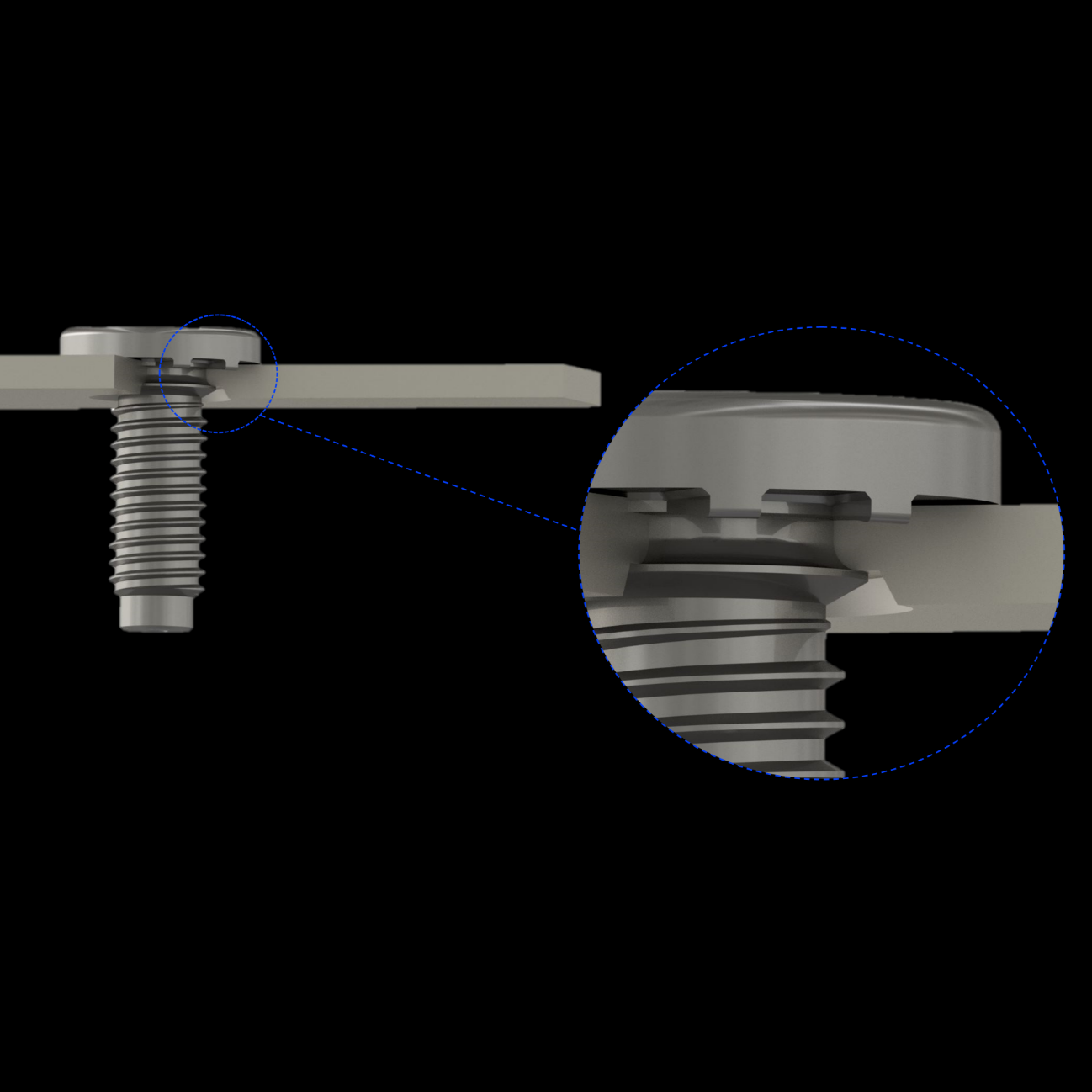

The Clinch Screw Checkle is made in hardened steel, 8.8, 9.8 or 10.9. Depending on size, it is suitable for minimum 0,6 mm thickness plates.
–
Mechanical properties
Hardened carbon steel
• 8.8
• 9.8
• 10.9
–
Standard surface treatments
• Plain (oiled)
• Zinc plating Cr3 – 8µm – clear passivation
• Zinc-Nickel plating – 8µm – black passivation
• Zinc flake (geomet – silver or black)
–
For more information, please contact our engineers:

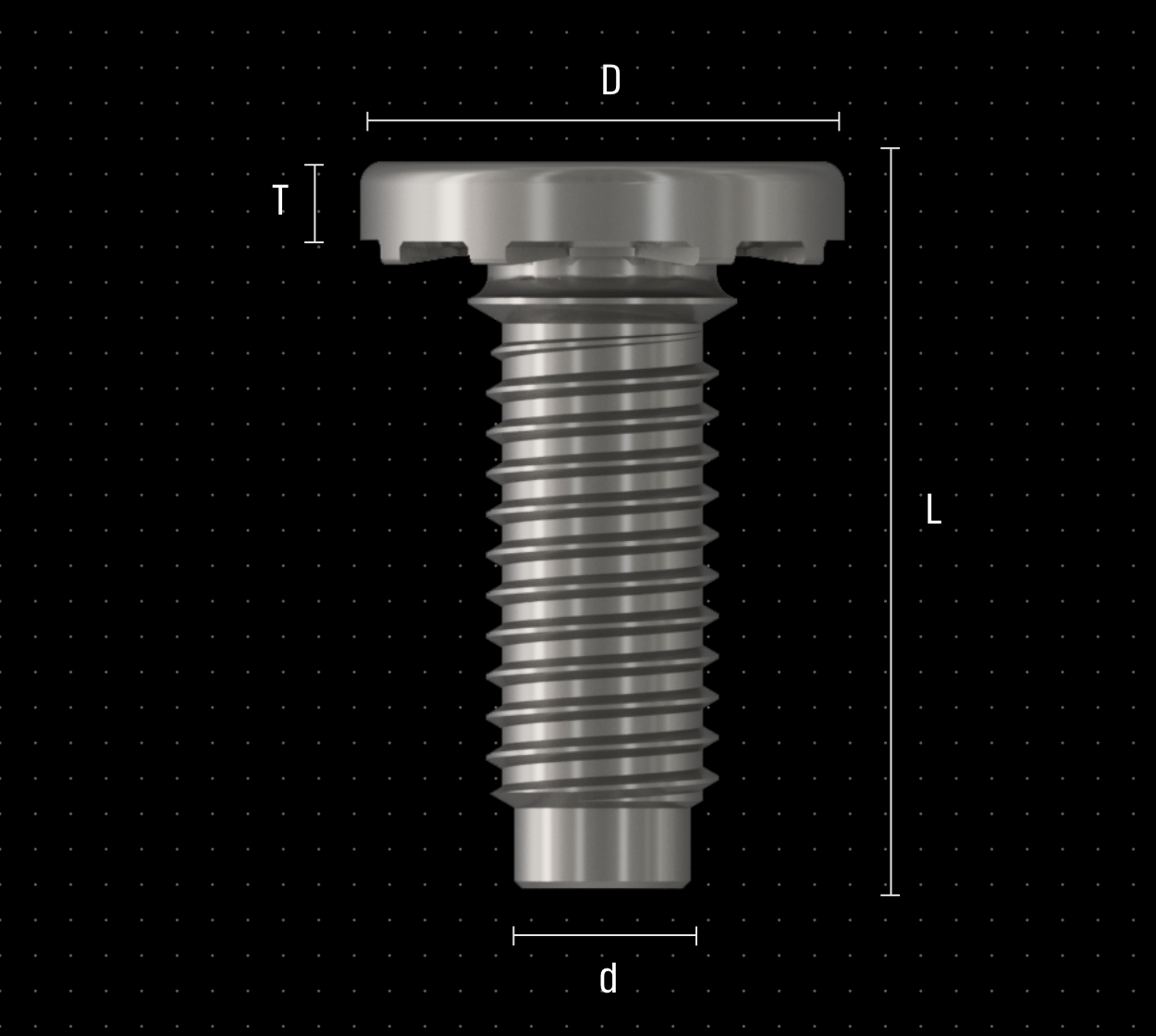

The X Clinch Screw Checkle are available in a wide range of versions: from screw size: M5 up to size: M14
For more information and detailed list of sizes. Download the production information below:

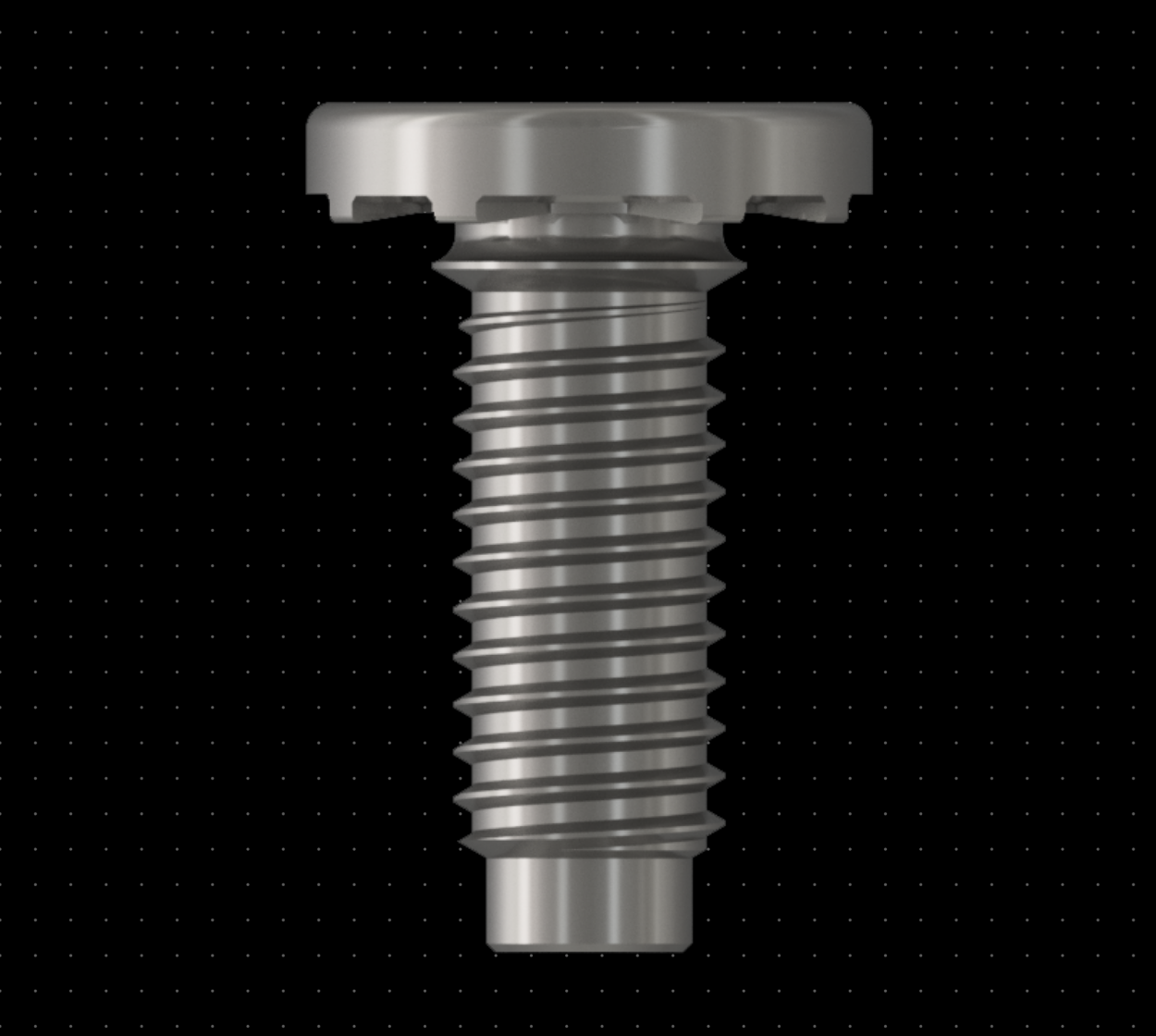

The Clinch Screw Checkle has features that generate many benefits such as:
• No welding or other destructive operations
• High tensile and torque resistance
• High torque out resistance
• Possibility to use in thin plates
The Clinch Nut is suitable for most materials such as:
• Steel
• Aluminium
• Magnesium
• Copper
• Composite
Implement Clinch Screw Checkle into your production. Download cad drawing below:
