CLINCH NUT
The Clinch Nut is made in hardened steel, 304 stainless steel, or 410 stainless steel. Depending on size, it is suitable for minimum 0,8mm thickness plates and maximum 90HRB hardness.
–
Mechanical properties
Hardened steel
• Size range: M2 – M14
• Sheet hardness (max) – 80 HRB
• Sheet tensile strength (max) – 500MPa
304 stainless steel
• Size range: M2 – M10
• Sheet hardness (max) – 70 HRB
• Sheet tensile strength (max) – 400MPa
410 stainless steel
• Size range: M2 – M10
• Sheet hardness (max) – 90 HRB
• Sheet tensile strength (max) – 620MPa
–
Standard surface treatments
• Plain (oiled)
• Zinc plating Cr3 – 8µm – clear passivation
• Zinc-Nickel plating – 8µm – black passivation
• Zinc flake (geomet – silver or black)
For more information, please contact our engineers:
The Clinch Nut is available in a wide range of versions, from nut size M2 – up to M14.
For detailed list of sizes and dimensions. Please download the production formation below:
The Clinch Nut has features that generate many benefits such as:
• No welding or other destructive operations
• Possible to use in high variety of materials and material thicknesses

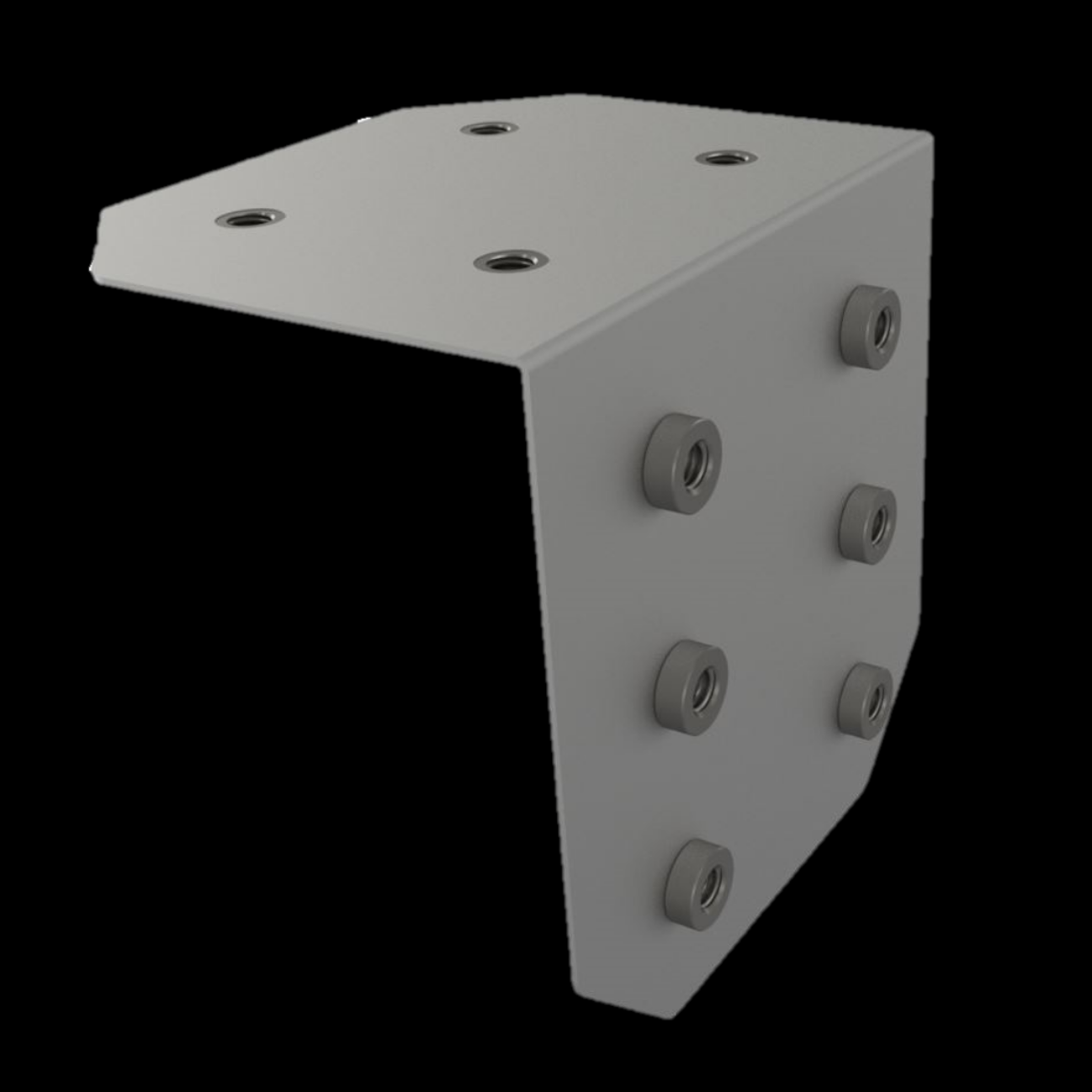

• Threaded anchor point in thin sheets

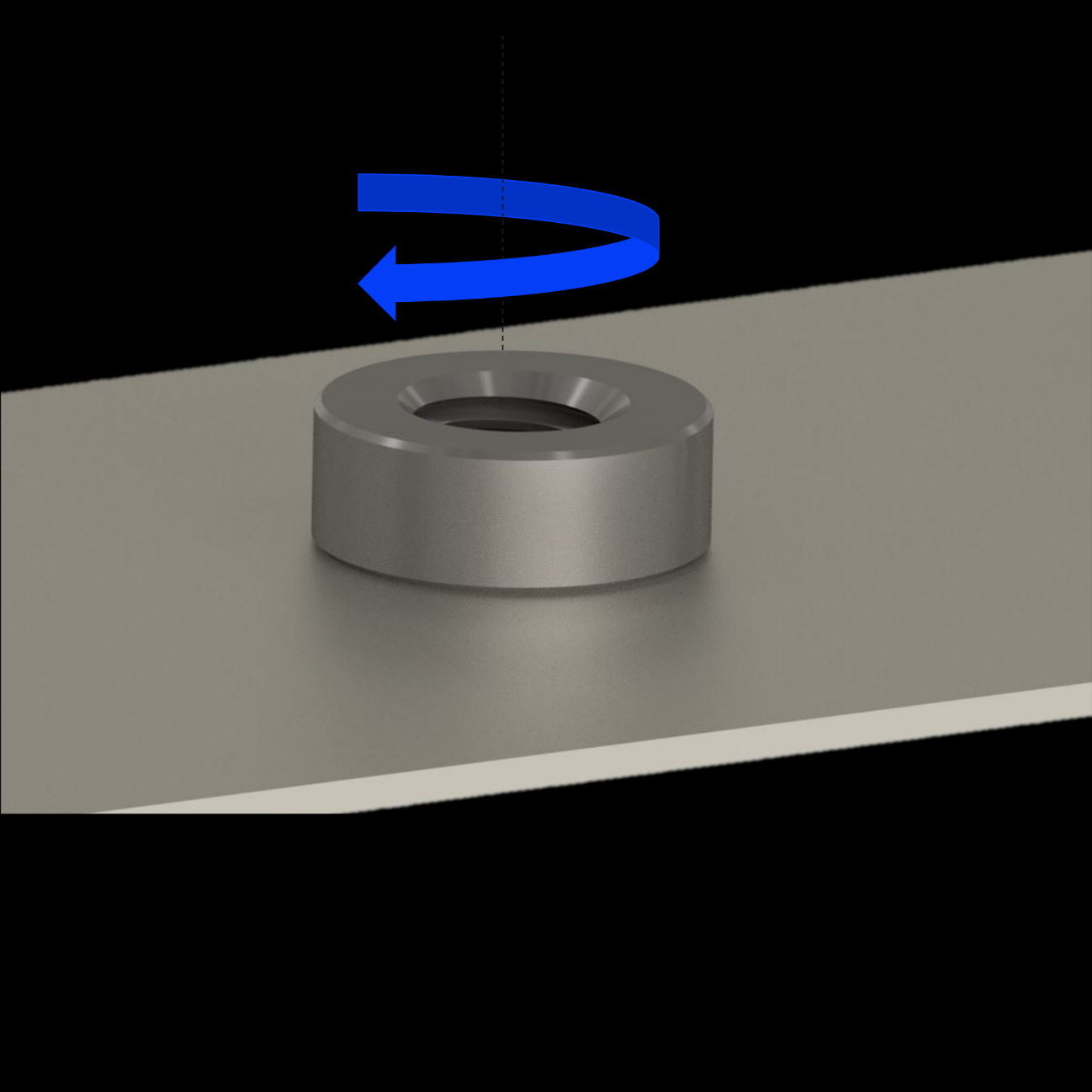

• High pull-/torque out resistance
• One sided access (no special die needed)
For more information, please contact our engineers:
The Clinch Nut is suitable for most materials such as:
• Steel
• Aluminium
• Magnesium
• Copper
• Composite
Implement Clinch Nut into your production. Download cad drawing below:
